620/40R22.5 ALLIANCE FLOTMASTER 381 148D I-2 TL

Description

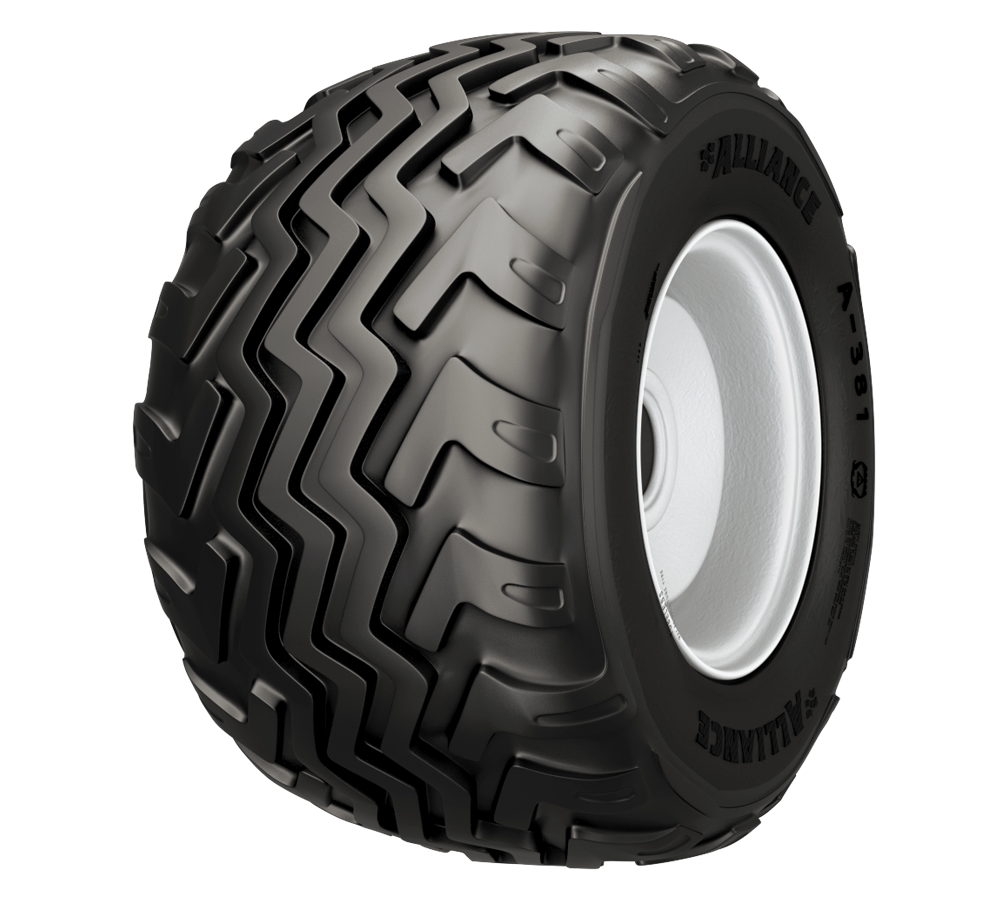

The Alliance 381 range of radial flotation tyres have been designed for use with silage trailers and other types of fodder transport operations working in grassland applications. The tyre's large volume enables it to carry increased loads at low inflation pressures and together with the large footprint this helps to ensure a low and uniform ground pressure, helping to minimise soil compaction and protect sensitive ground surfaces such as valuable soils and crops. In this respect, the unique rib-type pattern and rounded shoulders on the 381 offer further protection to ground surfaces. The shoulder lug design offers good self-cleaning ability whilst the non-directional tread offers good traction and allows for forward and reverse operations. The steel-belted radial casing offers strength and stability whilst the D-rated tyres allow for speeds of up to 65 km/h and offer good roadability.

Features

  • Radial steel-belted flotation tyres for grassland applications.
  • Large footprint and flotation properties for reduced and uniform ground pressure.
  • Rounded shoulders offer further protection of soils and crops.
  • High-speed capability and good roadability.

Specification

Application
FLOTATION
Size
620/40R22.5
Brand
ALLIANCE
Pattern
FLOTMASTER 381
Load/Speed Index
148D
TT/TL
TL
Construction
RADIAL
Nominal Section Width
620
Profile
40
Rim
22.5
TRA
I-2
Recommended Rim
20
Section Width
607 mm
Overall Diameter
1082 mm
Static Load Radius
492 mm
Rolling Circumference
3314 mm
Tread Depth
18.00 mm
Max Load (KG)/Speed (KM/H) 1
3150/65
Inflation Pressure Bar
3.20
Specification 1
STEEL BELTED
ECE 106
Yes
Warranty
7 YEARS
