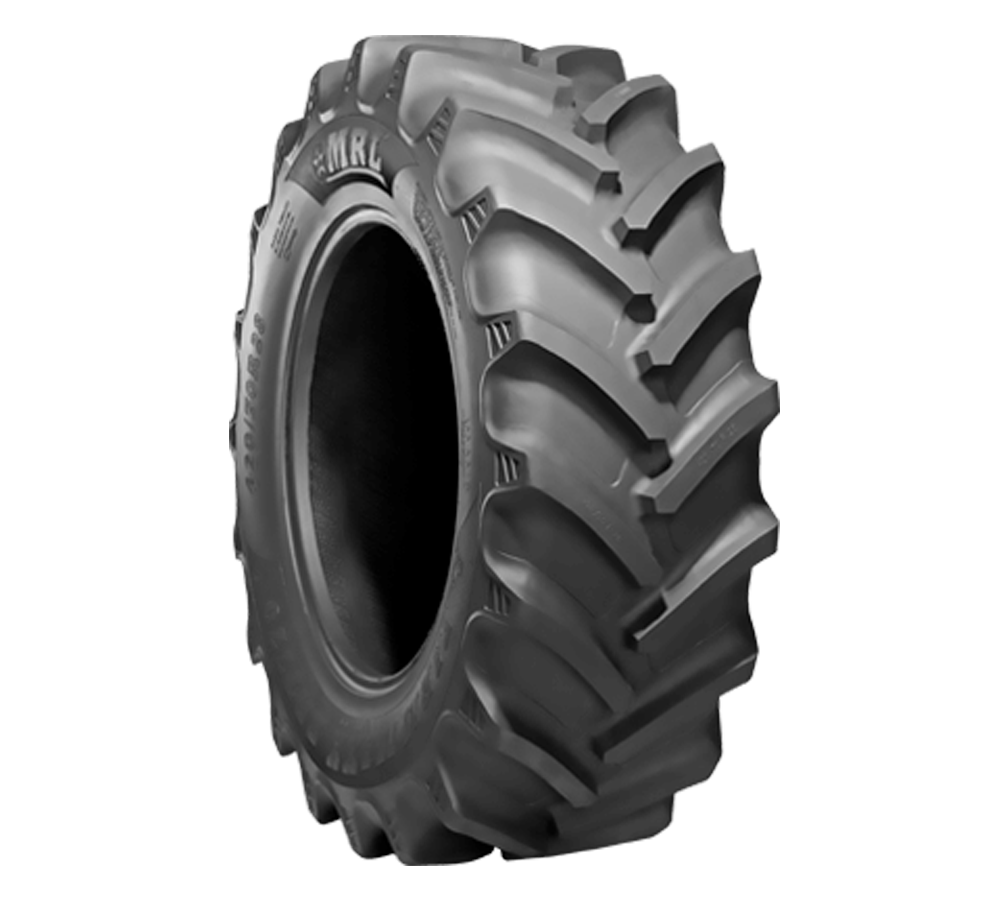

520/70R38 MRL FARM MAXX 70 RRT 770 150A8/B R-1W TL

Description

With a state of the art manufacturing facility in India, MRL produces solutions for applications including agricultural tyres, industrial tyres, OTR tyres and commercial tyres. Representing more than a value choice, MRL tyres are produced using the latest in tyre production techniques and are now accepted with many major OEMs. A continuously expanding production base has allowed for a comprehensive product range with over 1800 SKUs now exported to more than 90 countries worldwide.

Features

  • Lower sidewall helps to improve slope stability and improve handling.
  • Lower sidewall design to improve overall ride and handling on long transports.
  • Excellent flotation characteristics.
  • Minimizes field disturbance.
  • Special cut resistant compound.
  • Deep tread depth for longer life.
  • Excellent self-cleaning property.
  • Special rim guard protecting rim flange from damage.

Specification

Sector
AGRICULTURAL
Application
TRACTOR RADIAL
Range
TRACTOR RADIAL 70 SERIES
Size
520/70R38
Brand
MRL
Pattern
FARM MAXX 70 RRT 770
Load/Speed Index
150A8/B
TT/TL
TL
Construction
RADIAL
Nominal Section Width
520
Profile
70
Rim
38
TRA
R-1W
Recommended Rim
W16L
Permitted Rim
W15L W18L
Section Width
516 mm
Overall Diameter
1749 mm
Static Load Radius
813.76 mm
Rolling Circumference
5241.89 mm
Tread Depth
52.00 mm
Max Load (KG)/Speed (KM/H) 1
3350/40
Max Load (KG)/Speed (KM/H) 2
3350/50
Inflation Pressure Bar
1.60
ECE 106
Yes
