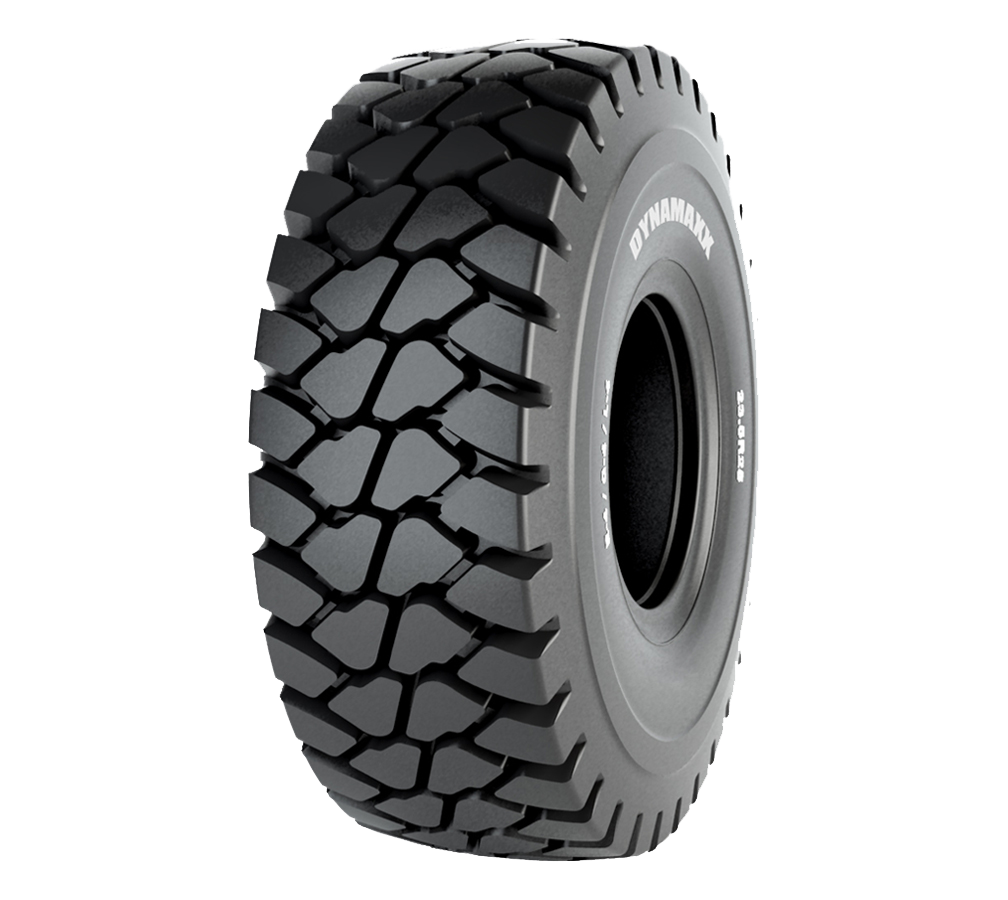

23.5R25 DYNAMAXX HAULER GRIP 185B/170A8/201A2 E-4/G-4/L-4 TL

23.5R25 DYNAMAXX HAULER GRIP 185B/170A8/201A2 E-4/G-4/L-4 TL

Description

Deep E4/L4 lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to minimize vibration at haul speeds, and provides the lowest cost-per-hour. Excellent traction in all off-road conditions. Deep undertread for improved puncture resistance. High quality carcass allows for excellent retreadability. Wear and cut resistant tread compound. Wide, flat footprint profile for maximum stability and wear.

Features

  • Engineered for:Loaders / Dump Trucks.

Specification

Application
EARTHMOVER
Size
23.5R25
Brand
DYNAMAXX
Pattern
HAULER GRIP
Load/Speed Index
185B/170A8/201A2
TT/TL
TL
Construction
RADIAL
Nominal Section Width
23.5
Rim
25
TRA
E-4/G-4/L-4
Star Rating
**
Recommended Rim
19.50/2.5
Section Width
602 mm
Overall Diameter
1650 mm
Tread Depth
52.00 mm
Max Load (KG)/Speed (KM/H) 1
9250/50 WHEN 525 KPA (E-4)
Max Load (KG)/Speed (KM/H) 2
6000/40 WHEN 300 KPA (G-4), 14500/10 WHEN 650 KPA (L-4)
Specification 1
STANDARD COMPOUND
Warranty
5 YEARS
