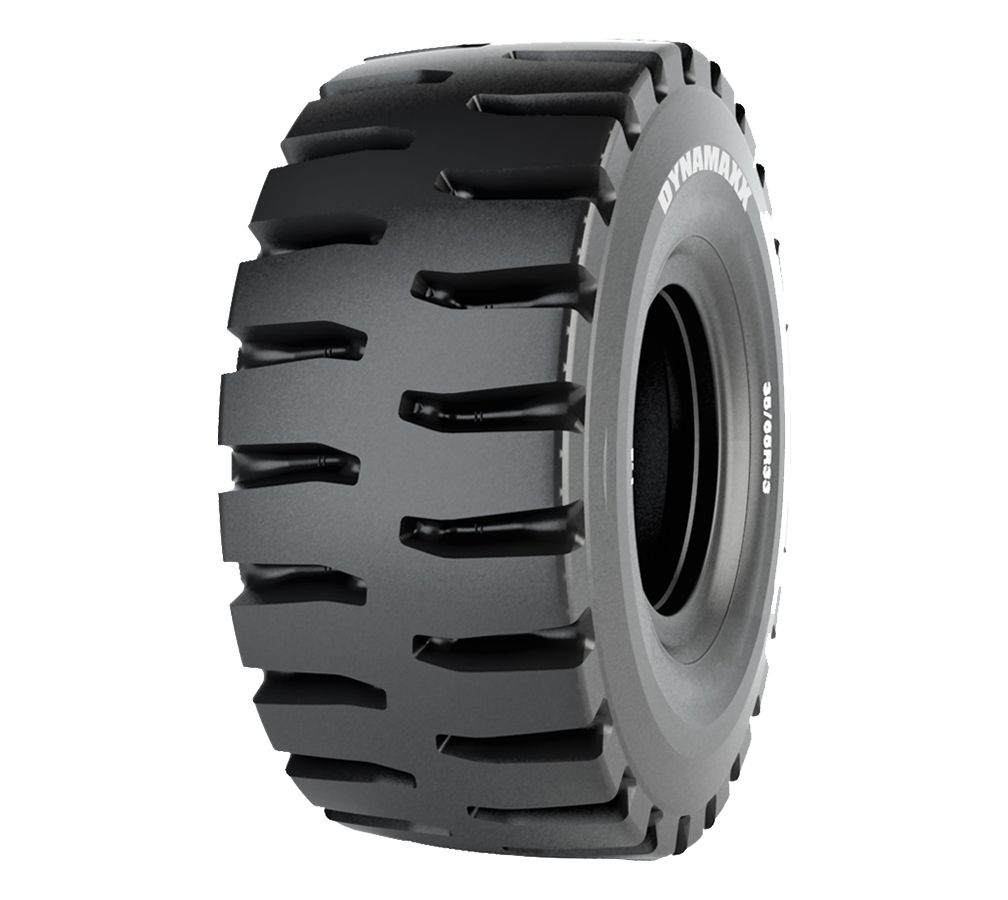

20.5R25 DYNAMAXX LUG TRAC 193A2 L-5 TL

20.5R25 DYNAMAXX LUG TRAC 193A2 L-5 TL

Description

Extra deep L5 offset lug pattern combines excellent traction and high resistance to wear and cutting. Specifically designed to maximize service life in the harshest applications. Excellent traction in all off-road conditions. Deep undertread for improved puncture resistance. Reinforced bead, shoulder, and sidewall. Specialized mining compound for increased cut and impact resistance.

Features

  • Engineered for: Underground Mining / Loaders.

Specification

Application
EARTHMOVER
Size
20.5R25
Brand
DYNAMAXX
Pattern
LUG TRAC
Load/Speed Index
193A2
TT/TL
TL
Construction
RADIAL
Nominal Section Width
20.5
Rim
25
TRA
L-5
Star Rating
**
Recommended Rim
17.00/2.0
Section Width
532 mm
Overall Diameter
1547 mm
Tread Depth
72.00 mm
Max Load (KG)/Speed (KM/H) 1
11500/10 WHEN 650 KPA (L-5)
Specification 1
CUT RESISTANT COMPOUND
Warranty
5 YEARS
