18.00-25 40 PR BKT SM 54 M L4S L-4S TL

Description

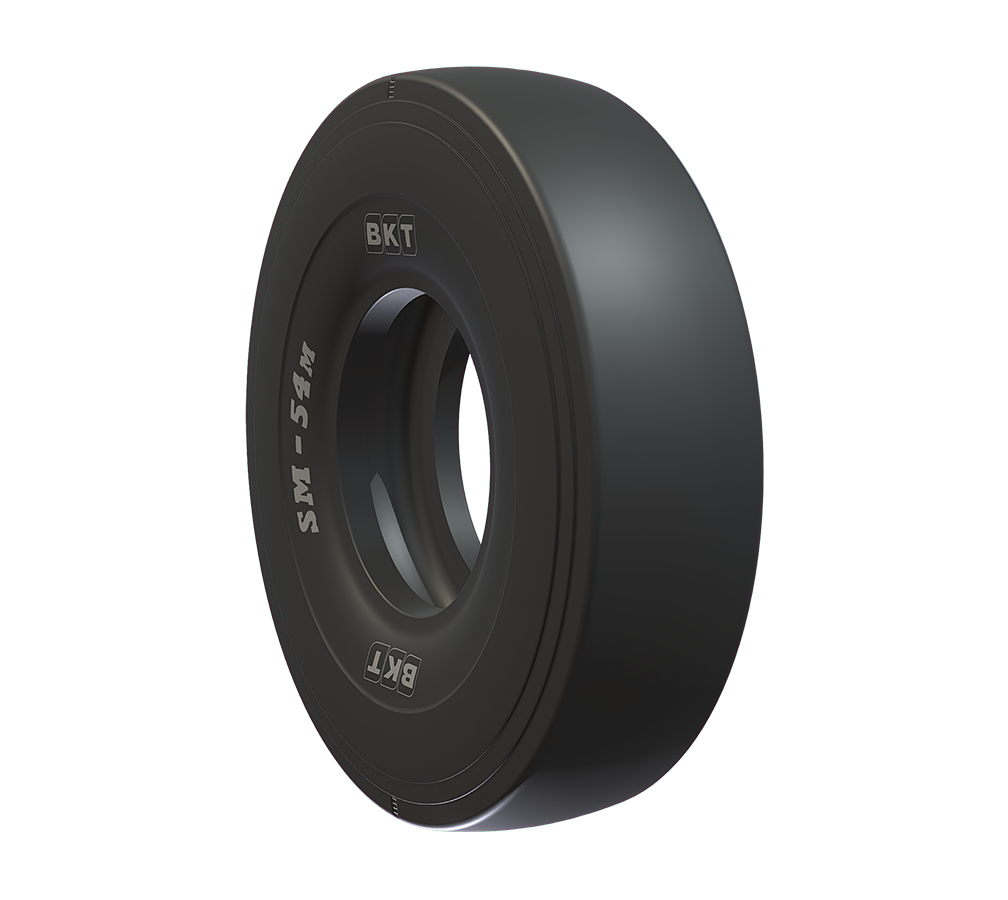

SM 54 M (L-4S) is a modified version of the SM 54 pattern with a flatter tread profile for a larger contact area. SM 54 are a range of bias-ply tyres that have been specifically designed for reach stackers and empty container-handlers working on hard surfaces in logistics and intermodal applications. The extra-deep and smooth (L-4S) tread pattern offers driver comfort and excellent stability in lift mode and a strong casing along with the cut-resistance compound ensures durability and an extended tyre life cycle.

Features

  • Bias-ply tyre designed for use with reach stackers and empty container handlers working on hard surfaces.
  • L-4S extra deep smooth tread for longer wear, increased stability and driver comfort.
  • Cut-resistance for increased durability.

Specification

Application
EARTHMOVER
Size
18.00-25
Brand
BKT
Pattern
SM 54 M L4S
Ply Rating
40
TT/TL
TL
Construction
BIAS
Nominal Section Width
18.00
Rim
25
TRA
L-4S
Recommended Rim
13.00/2.5
Permitted Rim
15.00/2.5
Section Width
528 mm
Overall Diameter
1650 mm
Static Load Radius
750 mm
Rolling Circumference
4880 mm
Tread Depth
59.00 mm
Max Load (KG)/Speed (KM/H) 1
22950/10
Inflation Pressure Bar
10.00
Specification 1
INDUSTRIAL
