17.5-25 16 PR BKT XL GRIP (L-3) 158B/177A2 E-3/L-3 TL

17.5-25 16 PR BKT XL GRIP (L-3) 158B/177A2 E-3/L-3 TL

Description

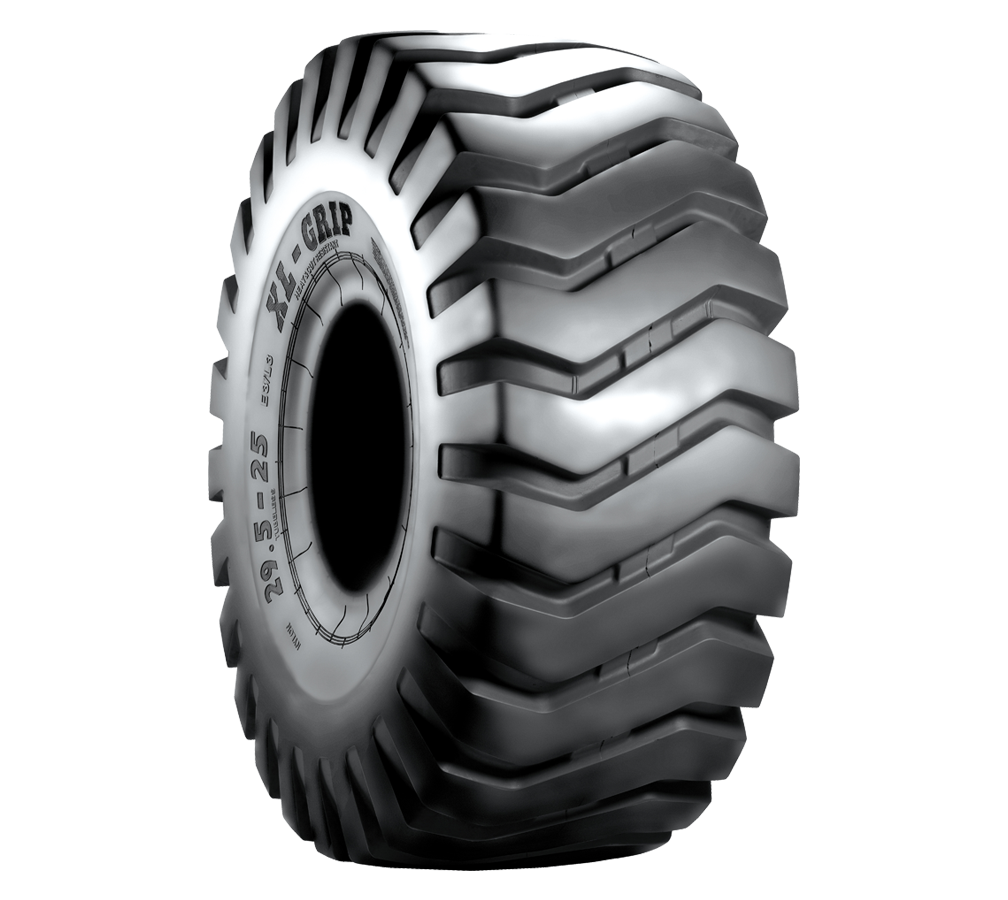

XL GRIP (E-3/L-3) is a wide-base bias-ply tyre designed for loader applications. The pattern delivers good traction abilities and a strong casing helps to minimize cuts and punctures in heavy-duty loading applications thus further extending tyre life.

Features

  • XL Grip is a non-directional tyre with a wide tread pattern.
  • Special compounds ensure resistance to cuts and impact damage.
  • XL Grip is suitable for a number of different applications.

Specification

Application
EARTHMOVER
Size
17.5-25
Brand
BKT
Pattern
XL GRIP (L-3)
Load/Speed Index
158B/177A2
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
17.5
Rim
25
TRA
E-3/L-3
Recommended Rim
14.00/1.5
Section Width
435 mm
Overall Diameter
1345 mm
Static Load Radius
622 mm
Rolling Circumference
3980 mm
Tread Depth
31.00 mm
Max Load (KG)/Speed (KM/H) 1
4250/50 WHEN 3.00 BAR (E-3)
Max Load (KG)/Speed (KM/H) 2
7300/10 WHEN 4.75 BAR (L-3)
Warranty
5 YEARS
