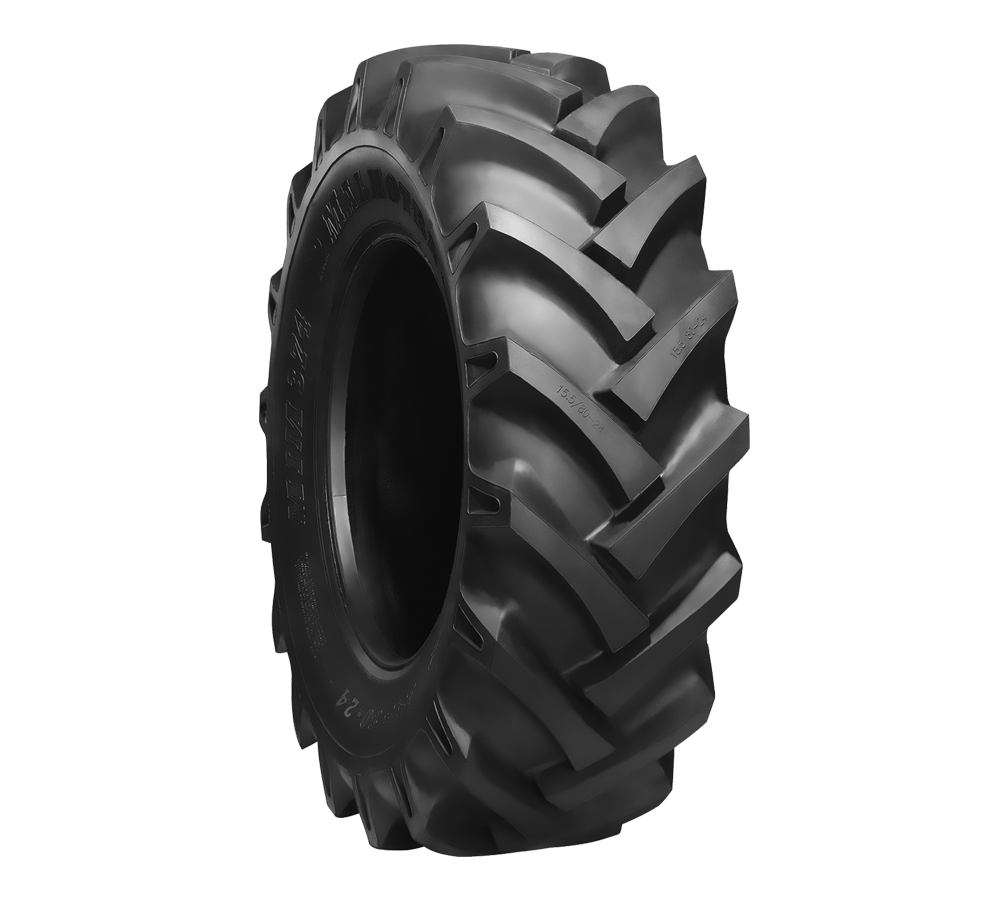

16.5/85-24 16 PR MRL MIM 374 168A6/164A8 R-1 TL

Description

With a state of the art manufacturing facility in India, MRL produces solutions for applications including agricultural tyres, industrial tyres, OTR tyres and commercial tyres. Representing more than a value choice, MRL tyres are produced using the latest in tyre production techniques and are now accepted with many major OEMs. A continuously expanding production base has allowed for a comprehensive product range with over 1800 SKUs now exported to more than 90 countries worldwide.

Features

  • Multi-angled and bold lug-bars for service durability and self cleaning.
  • Suitably designed lug bar spacing for comfort drive & added traction.
  • Strong and sturdy body plies for longer service durability.
  • Tread contact patch with broader lugs for heavy duty prime-movers.

Specification

Application
PLANT
Size
16.5/85-24
Equivalent Size 1
420/85-24
Brand
MRL
Pattern
MIM 374
Load/Speed Index
168A6/164A8
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
16.5
Profile
85
Rim
24
TRA
R-1
Recommended Rim
W13
Permitted Rim
W13 W14L
Section Width
417 mm
Overall Diameter
1322 mm
Static Load Radius
608 mm
Rolling Circumference
3900 mm
Tread Depth
40.00 mm
Max Load (KG)/Speed (KM/H) 1
5600/30
Max Load (KG)/Speed (KM/H) 2
5000/40
Inflation Pressure Bar
3.80
ECE 106
Yes
