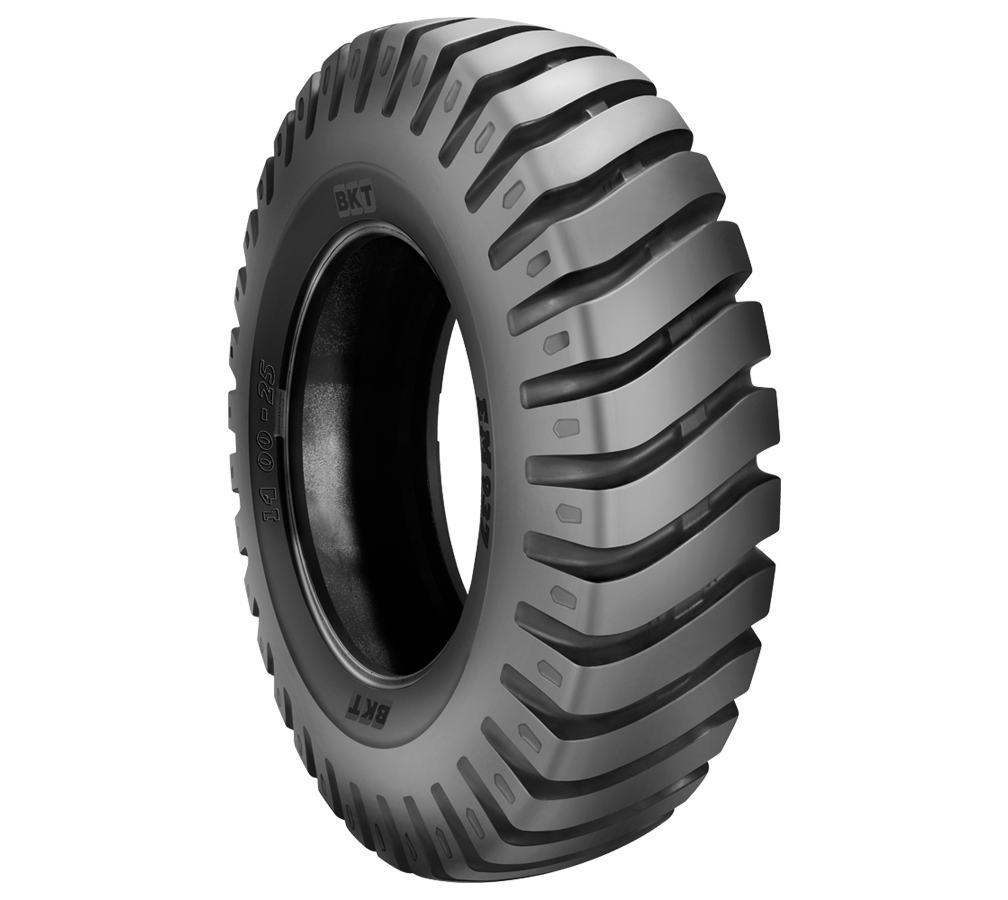

14.00-24 28 PR BKT EM 937 E3 (L) 168B/188A2 E-3/L-3 TL

Description

The range of EM 937 E-3 (L) have been specifically designed for backhoe loaders working in construction, digging and loading operations. Available in both TT (tube type) and TL (tubeless) versions, the tread pattern consists of a cut-and-chip resistant compound helping to increase the tyre's durability and a strong casing improves stability during operation. A high ply-ratings across certain sizes makes it particularly suitable for heavy-duty service requirements. Certain sizes within the EM 937 range are steel-belted or aramid-belted for increased durability, load-bearing and puncture protection dependant upon user requirements.

Features

  • Range of bias-ply tyres for backhoe loaders working in construction, loading and digging applications.
  • Cut-resistant compound.
  • Strong casing and high ply-ratings for increased load-bearing capacity.
  • Some sizes available in steel-belted and aramid-belted versions.

Specification

Application
EARTHMOVER
Size
14.00-24
Brand
BKT
Pattern
EM 937 E3 (L)
Load/Speed Index
168B/188A2
Ply Rating
28
TT/TL
TL
Construction
BIAS
Nominal Section Width
14.00
Rim
24
TRA
E-3/L-3
Recommended Rim
10.00W
Section Width
375 mm
Overall Diameter
1368 mm
Static Load Radius
628 mm
Rolling Circumference
4050 mm
Tread Depth
26.50 mm
Max Load (KG)/Speed (KM/H) 1
5600/50 WHEN 6.50 BAR (E-3)
Max Load (KG)/Speed (KM/H) 2
10000/10 WHEN 9.25 BAR (L-3)
Specification 1
CUT AND CHIP RESISTANT COMPOUND
Warranty
5 YEARS
