10.0/75-15.3 18 PR BKT AS 504 135A8 (FR) 123A8 (DW) TL

Description

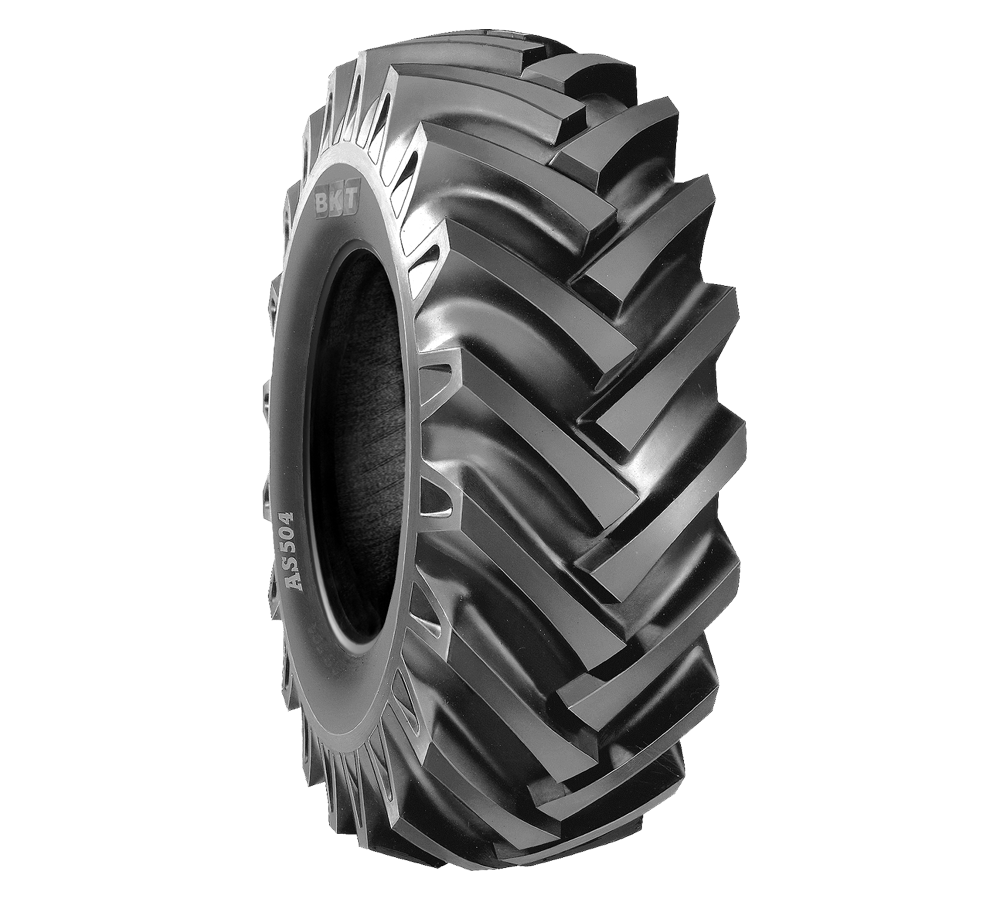

AS 504 is range of versatile bias-ply agro-industrial tyres used predominantly in soil tillage and transport operations. The tread pattern which offers excellent traction and self-cleaning properties also lends itself to use in other agro-industrial applications such as telehandlers working in farming environments with hay-harvesting and loading requirements. An HD (Heavy Duty) and "Special" (reinforced casing) version are available to meet specific end-user requirements when required.

Features

  • A range of versatile agro-industrial tyres for implement and soil tillage applications.
  • Traction pattern for good grip in muddy conditions and good self-cleaning properties.
  • Suitable for use in certain telehandler operations in farming environments.
  • HD and Special versions available across certain sizes.

Specification

Application
PLANT
Size
10.0/75-15.3
Brand
BKT
Pattern
AS 504
Load/Speed Index
135A8 (FR) 123A8 (DW)
Ply Rating
18
TT/TL
TL
Construction
BIAS
Nominal Section Width
10.0
Profile
75
Rim
15.3
Recommended Rim
9.00
Section Width
264 mm
Overall Diameter
785 mm
Static Load Radius
360 mm
Rolling Circumference
2404 mm
Tread Depth
23.00 mm
Max Load (KG)/Speed (KM/H) 1
2180/40 (FR) 1550/40 (DW)
Inflation Pressure Bar
7.10
ECE 106
Yes
Warranty
8 YEARS
Tread Directional/Non-Directional
DIRECTIONAL
